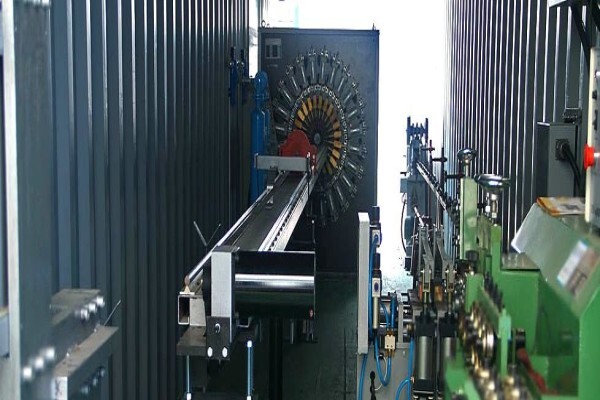

Filter cage making machine Claimed

Specification

Model: R-6-300 E-Series
Input voltage: 380V(3-phase) or custom
Power frequency: 50/60Hz
Instant power during welding: 15KVA(for 4mm wire)
Instant power during forming: 2KVA
Wire thickness: 2.8-5mm
Max ring diameter: 300mm
Min ring diameter: 70mm
Ring diameter tolerance: 0.16mm
Cooling: Natural cooling
Air flow required: 250L/min
Air pressure: 0.6-0.8MPa
Throughput: about 1560pcs/hr(for ring diameter 150mm)
Weight: 1000KG
Features

R-6-300 E-Series is not equipped with digital regulation of ring sizes, the ranges of ring thickness and ring size are also less than R-6-300.
1. High precision: intelligent "S" shape speed curve, the encoder and the motor form a closed-loop wire feeding control system, secure a diameter tolerance less than 0.16mm, eventually solve the ring precision issues inherent in the traditional mechanical or hydraulic ring making machines.
2.High stability: wire feeding unit is driven by two motors directly without gears, belts or other transmission parts which would get less precise due to wear-out.
3.Easy operation: ring size is adjusted by turning the wheels, much easier than traditional mechanical or hydraulic machines.
4. Automatic ring welding: worker attendance is not required during machine operation.
5. Compatible welding: capable of welding low, medium and high carbon steel, spring steel, galvanized steel.
