SE Controls has over 30 years’ experience in delivering specialist smoke ventilation control systems and adaptive natural ventilation to all sizes and types of building.
SE Controls systems automatically open specific windows, doors, louvers, dampers and roof lights to ventilate smoke and heat or for occupant comfort, in new or existing buildings. Our products are CE marked to EN 12101 as per SANS 10400-T. SE Controls has the ability to design a fully integrated smoke or natural ventilation system providing tailored solutions to all types of buildings including apartments, offices, schools, colleges and hospitals.
Window automation is used predominately for the purpose of natural ventilation and smoke ventilation, creating a healthier and safer environment.
08:00-16:00
08:00-16:00
08:00-16:00
08:00-16:00
08:00-16:00
Closed
Closed

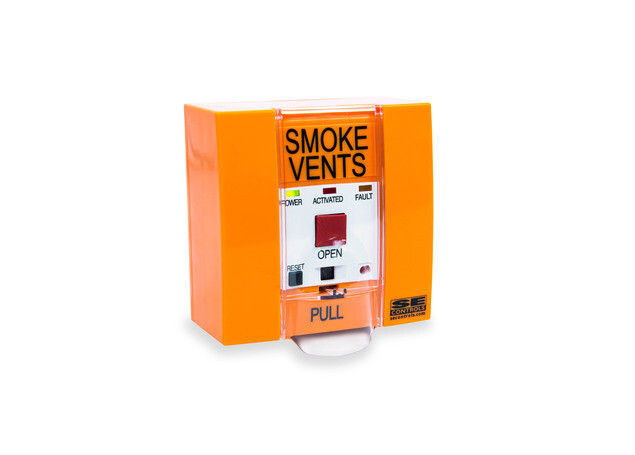

The MCP is designed to allow the Fire & Rescue Service to manually override the smoke control system through a user-friendly interface. The design includes an open button and a close/reset button, which are accessed by lifting the clear front door. The MCP contains actuator switching circuitry that also monitors actuator cabling and circuitry for any faults, while providing fault monitoring and support for one or more smoke detectors and cabling.
NVLogiQ constantly monitors indoor air quality (IAQ), including carbon dioxide levels, temperature and humidity in individual rooms or zones and uses innovative control algorithms to automatically manage the operation of ventilation and heating systems to optimise IAQ, thermal comfort and energy efficiency. The compact room controller can be used to monitor individual rooms which provides a highly versatile solution that also allows remote monitoring and data logging solutions. By linking NVLogiQ room controllers to dedicated PSUs, the system can take full control over the automatic operation of windows, louvres, rooflights and other powered vents, in conjunction with heating and cooling systems to provide an energy efficient integrated IAQ solution.

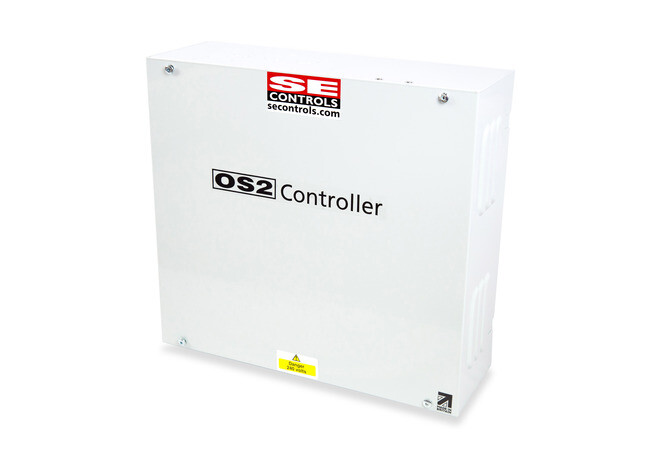

The OS2 Controller is an intelligent 24V dc control system designed to drive 2-wire 24V dc actuators in both smoke control and environmental ventilation systems. Operating from a 230V ac 5A supply, the OS2 SHEVTEC Controller can deliver up to 8A, enabling it to drive 24V motorised actuators and magnetic catches and incorporates battery backup to allow effective operation if the mains supply should fail. The OS2 SHEVTEC Controller is CE Marked and tested in accordance with EN12101-10. The system can be expanded further by linking additional 30A PSUs together to accommodate large current requirements.

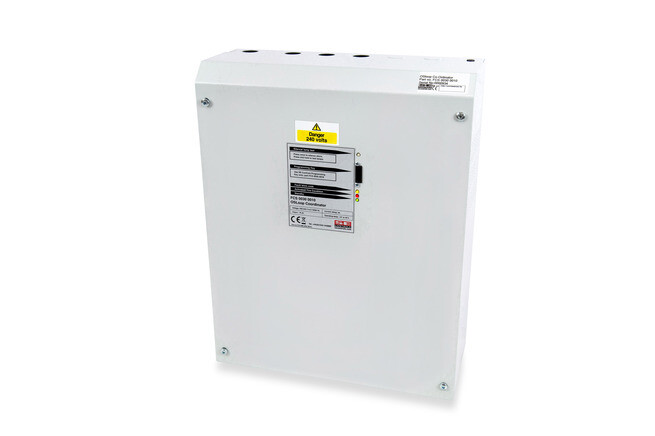

The OSLoop Co-ordinator is a modular smoke control product that enables the centralised coordination and control up to 15 remotely mounted manual control points (MCPs), while also allowing larger systems to be created, controlling up to 64 MCPs, by linking multiple OSLoop Co-ordinators. The Co-ordinator controls power and data to the networked system, fully monitoring primary (mains) and secondary (battery) power supplies, while also intelligently monitoring system current requirements and determining how and when the MCPs require power to activate automatic opening vents (AOV).
The compact SECO Ni 24 25 chain actuators are being displayed in both single and twin chain versions to show their versatility and suitability for use in environmental applications. The SECO Ni 24 25 actuators are CE marked, operate on a 24 Volt dc supply and have been tested to 15,000 cycles.
SECO Ni 24 40 chain actuators are also being shown in single and twin chain versions and can be used in both smoke control and environmental applications. They are CE marked and operate on a 24 Volt dc supply and have been tested to 15,000 cycles. The actuators are also certified and tested in accordance with the harmonized EN12101-2 standard, making them suitable for use in smoke ventilation systems.

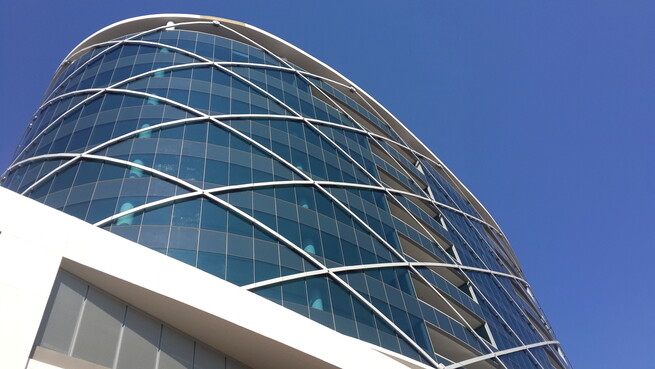

A new prestige office development in Sandton, Johannesburg is using a combined smoke and natural ventilation system, involving automatic window vents in the building’s elliptical glazed central tower, which is actuated and controlled by an integrated solution from SE Controls Africa Located in the Sandton business area, which is regarded as one of South Africa’s prime commercial locations, the Multi Million Rand Capital Hill development combines seven floors of office space, as well as covered parking for vehicles. Designed by MWLF Architects, the building not only provides high quality business facilities, but is also highly energy efficient and is constructed to achieve a ‘Four Green Star’ rating from the Green Building Council of South Africa. As part of this process, the building’s 12 storey elliptical central tower features a fully glazed external facade within an aluminium lattice structure, which incorporates an automatic window and vent opening system to provide natural ventilation and overnight cooling, as well as smoke ventilation in the event of a fire. To achieve the necessary level of versatility and control required for the automated vent system, SE Controls supplied 49 SECO N 24 25 twin chain actuators with a 350mm stroke length together with 7 SHEVTEC® control panels and manual control points (MCP), which were networked using the company’s OSLink network cards. An external weather station was also installed to provide an information feed on ambient conditions into the system. In normal operation, the windows open and close automatically, to provide cooling and a supply of fresh air, but in the event of a fire this is over-ridden and vents are opened to allow smoke to be vented, enabling escape routes to be kept smoke free. Russell Cramb, Key Accounts Manager with SE Controls Africa, explained: “Capital Hill is an iconic building and has already attracted a lot of attention for its eye-catching design, green credentials and the quality of facilities it provides. We have an immense amount of experience in combined natural and smoke ventilation solutions, which we used when working with the architect to create a solution that wouldn’t compromise the smooth architectural lines of the external glazed façade.” Further information on SE Controls’ products, solutions and projects can be obtained by visiting www.secontrols.co.za or calling +27 31 466 1857 THE TEAM: Manufacturer & Smoke Ventilation Specialists: SE Controls Africa Project Manager: Robertson Ventilation Industries Architect: MWLF Architects
SE Controls Africa (SECAF) is exhibiting key products from its extensive range of smoke control, environmental ventilation and window automation solutions at this year’s Securex fire and security trade show, which takes place between 22nd and 24th May at the Gallagher Convention Centre, Midrand, Johannesburg, South Africa. The show, which is celebrating its 25th year in 2018, is recognised as one of the leading exhibitions serving the security and fire sectors in South Africa, which made it a perfect match for Durban based SECAF, who have taken a 12 sq.mtr stand space at this key industry exhibition. Among the products being displayed by the company are the SECO Ni 24 25 and SECO Ni 24 40 chain actuators; OS2 SHEVTEC Controller; OSLoop Co-ordinator and compact Manual Control Point (MCP) units, as well as the NVLogiQ™ Room Controller. SECAF Marketing Manager, Sonja du Toit, commented: “Securex is a core exhibition for us, as it enables us to show our products and solutions to a wide range of businesses and key people within the fire safety and security industry. We have been particularly successful in developing the business over the last eight years and want to maintain this momentum by building new associations, as well as reinforcing existing relationships by showing our latest products.” SE Controls Africa – Product Information SECO Ni 24 25 chain actuators The compact SECO Ni 24 25 chain actuators are being displayed in both single and twin chain versions to show their versatility and suitability for use in environmental applications. The SECO Ni 24 25 actuators are CE marked, operate on a 24 Volt dc supply and have been tested to 15,000 cycles. SECO Ni 24 40 chain actuators SECO Ni 24 40 chain actuators are also being shown in single and twin chain versions and can be used in both smoke control and environmental applications. They are CE marked and operate on a 24 Volt dc supply and have been tested to 15,000 cycles. The actuators are also certified and tested in accordance with the harmonized EN12101-2 standard, making them suitable for use in smoke ventilation systems. OS2 SHEVTEC Controller The OS2 Controller is an intelligent 24V dc control system designed to drive 2-wire 24V dc actuators in both smoke control and environmental ventilation systems. Operating from a 230V ac 5A supply, the OS2 SHEVTEC Controller can deliver up to 8A, enabling it to drive 24V motorised actuators and magnetic catches and incorporates battery backup to allow effective operation if the mains supply should fail. The OS2 SHEVTEC Controller is CE Marked and tested in accordance with EN12101-10. The system can be expanded further by linking additional 30A PSUs together to accommodate large current requirements. OSLoop Co-ordinator The OSLoop Co-ordinator is a modular smoke control product that enables the centralised coordination and control up to 15 remotely mounted manual control points (MCPs), while also allowing larger systems to be created, controlling up to 64 MCPs, by linking multiple OSLoop Co-ordinators. The Co-ordinator controls power and data to the networked system, fully monitoring primary (mains) and secondary (battery) power supplies, while also intelligently monitoring system current requirements and determining how and when the MCPs require power to activate automatic opening vents (AOV). Manual Control Point The MCP is designed to allow the Fire & Rescue Service to manually override the smoke control system through a user-friendly interface. The design includes an open button and a close/reset button, which are accessed by lifting the clear front door. The MCP contains actuator switching circuitry that also monitors actuator cabling and circuitry for any faults, while providing fault monitoring and support for one or more smoke detectors and cabling. NVLogiQ™ Room Controller NVLogiQ constantly monitors indoor air quality (IAQ), including carbon dioxide levels, temperature and humidity in individual rooms or zones and uses innovative control algorithms to automatically manage the operation of ventilation and heating systems to optimise IAQ, thermal comfort and energy efficiency. The compact room controller can be used to monitor individual rooms which provides a highly versatile solution that also allows remote monitoring and data logging solutions. By linking NVLogiQ room controllers to dedicated PSUs, the system can take full control over the automatic operation of windows, louvres, rooflights and other powered vents, in conjunction with heating and cooling systems to provide an energy efficient integrated IAQ solution. Come visit us in Hall 2, Stand A10 Media Contact Get in touch with our SECAF marketing team. Sonja du Toit, SECAF Marketing Manager E: [email protected] T: +27 31 466 1857 W: WWW.SECONTROLS.CO.ZA

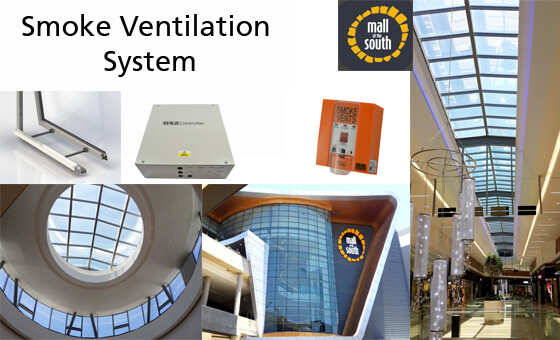

The smoke ventilation system at Johannesburg’s recently opened Mall of the South shopping centre is using SE Controls’ window automation, vents and control panel solutions to ensure it operates perfectly in the event of a fire, allowing smoke-free escape routes to be maintained for shoppers and staff. Designed by Vivid Architects, the 1.8 billion Rand development provides more than 150 stores and restaurants, covering fashion, jewellery and electronics, as well as a wide range of other luxury goods within the 65,000sq.mtr complex, which also has car parking for 3,000 vehicles. Due to the large open plan areas within the mall and the high volumes of people, effective smoke ventilation is essential to ensure escape routes are kept clear if a fire should occur. As a result, the system uses 62 Curvent International vents and 20 x SE Controls’ SECO N 24 40 twin chain actuators, as well as 12 x 24 Volt dc OS2 controls panels and 8 x manual control point (MCP) switches. Working closely with smoke control specialist, CURVENT INTERNATIONAL, the system, which also uses roof mounted fans to help vent smoke from the mall, is controlled centrally by a repeater panel located in the main security office to provide additional safety and peace of mind. In the event of a fire, the mall’s smoke sensors trigger SE Controls’ EN12101-10:2003 compliant control panels and chain actuators to automatically open the window and ventilators, allowing smoke to be vented to assist escape. Manual Controls Point (MCP) switches are also incorporated within the design to allow manual actuation of the system. Further information on SE Controls’ products, solutions and projects can be obtained by visiting www.secontrols.co.za or calling +27 31 466 1857

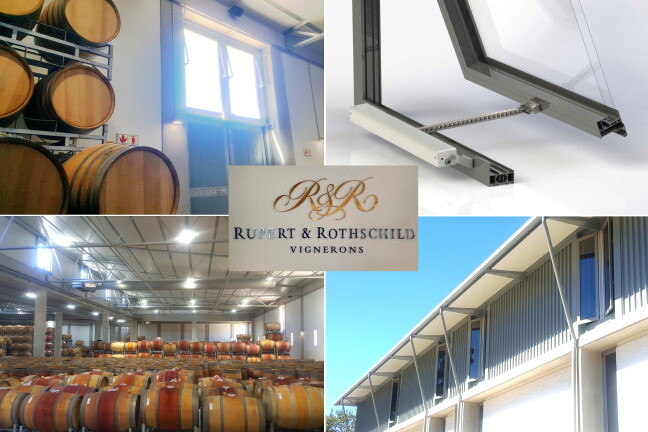

A combined smoke and natural ventilation system at a leading Western Cape wine grower’s new production facility at Simondium is using chain actuators, monitoring and control solutions from SE Controls Africa to help provide a comfortable and safe working environment. Established in 1997, Rupert & Rothschild Vignerons’ new 6,000 m2 winery was constructed to meet growing demand for their wines. The process engineer and principal agent was consultC Engineering and the architectural vision was produced by Malherbe & Rust Architects. The new facility is separated into zones, each dedicated to a specific wine production process. Maturation accounting for almost 2,400 m2 of the total area and the remaining capacity split between fermentation and the storage & blending areas. In order to meet the ventilation requirements for carbon dioxide (CO2) smoke and natural ventilation, Charl de Kock of consultC Engineering designed individual window automation and control solutions dedicated to each zone. Key switches are also installed to enable localised operation by authorised users. By using window automation rather than automatic opening roof vents, the maximum roof space could be made available for solar PV panels, which help reduce energy consumption and plant running costs. During normal operation, the system uses natural ventilation to allow the day-to-day management of temperatures, while also enabling CO2 produced during the fermentation process to be vented to atmosphere. In the event of a fire, the natural ventilation mode is over-ridden. When the system receives a signal from fire and smoke sensors, the smoke ventilation mode triggers all windows to automatically open fully, which enables smoke to be vented and escape routes to be kept clear. SE Controls Africa worked closely with smoke control specialist, Curvent International on the system, which uses a total of 44 SECO Ni 24 40 twin chain actuators and nine OS2 SHEVTEC controllers, as well as 4 SELA N linear actuators dedicated to the maturation area. With SE Controls latest SHEVTEC controller, the client now has the resources available to enable remote monitoring of the system’s live performance. This software tool allows parameters to be set and adjusted to meet the requirements of individual installations. With improved data logging functionality, the client has full control over the system and has the ability to record and print events logs. This includes faults, battery low and activation of fire signal. Dyllan Seller, General Manager with SE Controls Africa, explained: “We have an immense amount of experience in combined natural and smoke ventilation solutions, which we utilised fully when working on this project. As a result the system provides a safe and comfortable environment for workers at Rupert & Rothschild Vignerons’ impressive new facility.” Further information on SE Controls’ products, solutions and projects can be obtained by visiting http://www.secontrols.co.za or calling our offices: (Durban) +27 31 466 1857 (Johannesburg) +27 82 451 7001 (Cape Town) +27 82 496 0863 THE TEAM: Smoke Ventilation Equipment Manufacturer: SE Controls Africa Smoke Ventilation Manufacturer & Contractor: Curvent International Architect: Malherbe and Rust Consulting Engineers: consultC Engineering Contractor: CSV Construction

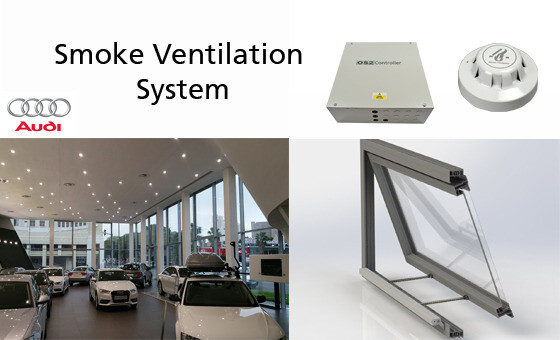

Audi’s Durban Central dealership in South Africa is using smoke ventilation and window automation technology from SE Controls Africa to ensure that escape routes can be kept clear from smoke in the event of a fire, while maintaining a safe environment for customers and staff. SE Controls worked closely with specialist fire system installers, CURVENT International, to ensure that the fire consultant’s specifications, which were developed by Dynamic Fire Solutions, were implemented precisely on the project, which demanded an updated and more effective solution than the existing system. To achieve this, SE Controls supplied six 350mm stroke length SECO N 24 25 twin chain actuators, which are linked to the company’s EN compliant SHEVTEC controller and six separate smoke detectors, mounted individually just above the window reveals, to ensure that in the event of a fire, the building’s windows automatically open to allow smoke to be vented and escape routes to be kept clear. As the smoke and fire detectors are mounted in the ceiling close to the location of the window actuators, the system required no supplementary sensing. Fireman’s over-ride switches were also provided by SE Controls, which allow fire personnel to take control of the system and manage the fire fighting process as well as providing safe access to the building should a fire occur. Further information on SE Controls’ products, solutions and projects can be obtained by visiting www.secontrols.co.za or calling +27 31 466 1857 THE TEAM: Smoke Ventilation Equipment Manufacturer: SE Controls Africa Smoke Ventilation Manufacturer & Contractor: CURVENT International Fire Consultant: Dynamic Fire Solutions
